Key Specifications/Special Features

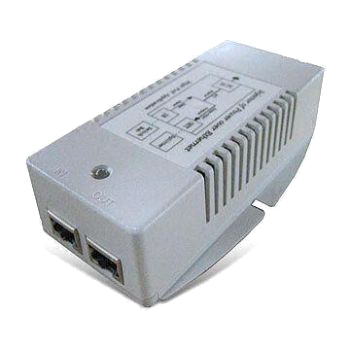

- Functions: transforms AC power to 56V DC power
- Injects 56V DC through a CAT 5 cable, use all 4 pairs into remote devices such as wireless AP, IP phone, web camera and other functions
- Input: 90 to 264V AC
- Output: 56V DC, 1.07A
- Efficiency: 80% minimum
- Protection:
- Short circuit protection: any output short GND terminal will lead to auto reset
- Overload protection: load current over 1,600mA will lead to auto reset
- High voltage protection: output DC voltage over 58V will lead to auto reset
- General description:
- Operating temperature: -25 to +50 degree Celsius
- Storage temperature: -40 to +85 degree Celsius
- Operating humidity: 5 to 90%
- Mechanical and dimensions:
- Plastic case material: PC
- Plastic case finish: texture
- Plastic case color: gray/black
- Plastic case dimensions: 125 x 72 x 38mm
- CE and FCC approved
