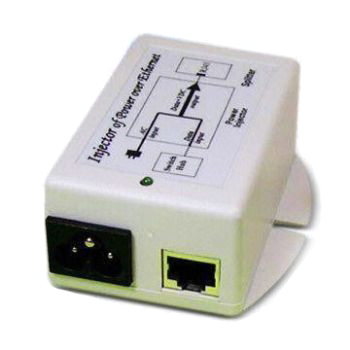

AC PoE

Key Specifications/Special Features
Function:
Transforms AC power to 24V DC power
Injects 24V DC through a CAT-5 cable, 4-pin, 5, 7, 8, into remote devices such as < li>
wireless AP, IP phone and web camera
- Input: 90 to 264V AC
- Output: 24V DC, 500mA maximum
- Efficiency: 70% minimum
- Protection:
  - Short circuit protection:
    Any short output GND terminal will lead to an auto reset
  - Over load protection
    Load current over 600mA will lead to an auto reset
  - High voltage protection
    Output DC voltage over 28V < li>
  - will lead to an auto reset
- General description:
  - Operating temperature: -0 to +60 degrees Celsius
  - Storage temperature: -10 to +70 degrees Celsius
  - Operation humidity: 5 to 90%
- Mechanical and dimensions:
  - Plastic case material: ABS
  - Plastic case finish: texture
  - Plastic case color: gray or black
  - Plastic case dimensions (L x W x H): 85 x 76 x 36mm
  - Net weight: 150g
