DC PoE

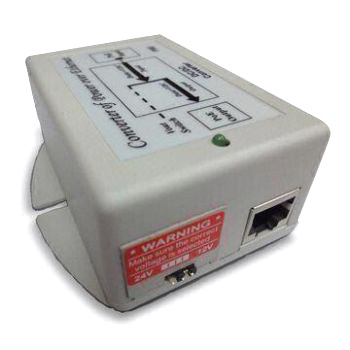

24W DC/DC Gigabit PoE Converter with 48V DC PoE Input and 12/24V Switchable Output Voltages
Input voltage: 48V PoE 802.3af compliant
Output voltage and current: +12V or 24V non-802.3af
Maximum load: 1.0A
Power: 24W (maximum)
Minimum load: 0A
Load regular percentage: 5%
Line regular percentage: 1%
Ripple percentage: 1.5%
Noise percentage: 3%
Ripple and noise bandwidth: from DC to 20MHz
Terminated with 47uF capacitor and 0.1uf MPE capacitor of proper polarity
Efficiency: 85% min at 48V DC, input at F.L
Short-circuit protected output
Short GND terminal to prevent damage to power supply
Auto-recovery
Input fuse protection
Current limit: 150 to 250% at
Operating temperatures: -25 to 50°
Storage temperatures: -25 to 85°C
Operating humidity: 5 to 90%
Free air cooling
Dimensions: 76 x 48 x 27mm
Non-isolated I/O
Low-battery protection
RJ-45 PoE input (data and power) and RJ-45 PoE output (data and power)
