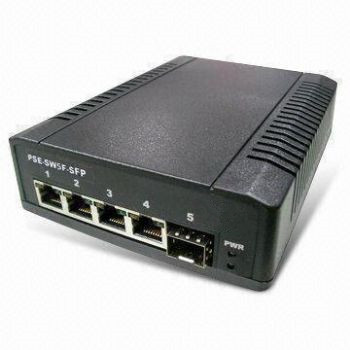

DC PoE

Specifications

• Standards: IEEE802.3/IEEE802.3u standards (10base-T/100base-T)
• Ports: 5-port with 4 PoE (PSE), supports auto-crossover and auto-polarity
• Transmission speed: 1000/100/10Mbps (1000/100/10base-T), auto negotiation
• Switch technology: store and forward
• Protocols: CSMA/CD
• Flow control: IEEE802.3x (full duplex), back pressure (half-duplex)
• Data transmission rate: 148800pps for 100base-T, 14880pps for 10base-T
• Address table: 1KB Mac address table, self-learning
• Connector: RJ-45
• PoE port: 1 to ports, auto power management
• Pin assignment: TX (1, 2), RX (3, 6), V+ (4, 5), and V- (7, 8)
• Maximum PoE power: per port 45W
• PoE disconnect mode: AC disconnect
• PoE auto detection: IEEE802.3af
• PoE protection: over temperature, over current, and over/under voltage
• LEDs: link/activity (green on/green blinking every 43ms at 100Mbps/green blinking every 120ms at 10Mbps)
• PoE (yellow) on-PD detect, blinking error detect
• Power green normal, red alarm
• Power input: 24V DC (-42 to 60V), dual DC inputs with reverse polarity protection (5 pins terminal block)
• Power consumption: 5W without PD loading
• Operating temperature: -10 to 70°C
• Operation humidity: 90% relative humidity, non-condensing
• Storage temperature: -40 to +85°C
• Dimension: 40 x 116 x 159mm
