DC PoE

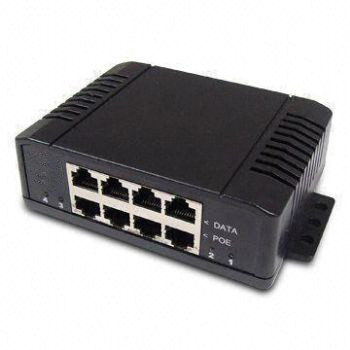

4 port Gigabit PoE Injector with 44~57VDC Input and 802.3at 35W Per Port output

  • DC/DC PoE (Power-over-Ethernet) injector, provide up to four different voltage DC input and four different voltage PoE output, output power maximum 2A/port, data rate can be 10M/100M/1000M
  • Polarity of each PoE output can be reversed if you need to reverse the output polarity
  • Installation of the PoE injector is very easy and you can start to use the product as soon as you are powered up
  • The bottom ports 1-4 on the front panel are used for carry PoE output
  • Normally as detailed below:
    • Data pair A on line 1 and 2
    • Data pair B on line 3 and 6
    • Data pair C plus V+ on line 4 and 5
    • Data pair D plus V- on line 7 and 8
  • Data rate: 10M/100M/1000Mbps
  • Input voltage: -44 to -57V DC
  • Maximum PoE power: current limited – 35W/port
  • PoE protection: over-current, over/under voltage
  • LEDs: green-PD detect, red-power ready, off-No power apply
  • Operating temperatures: -40 to 70℃
  • Operation humidity: 90% relative humidity, non-condensing
  • Storage temperatures: 40 to 85℃
  • Dimensions: 40 x 118 x 90mm, available for DIN RAIL mounted
