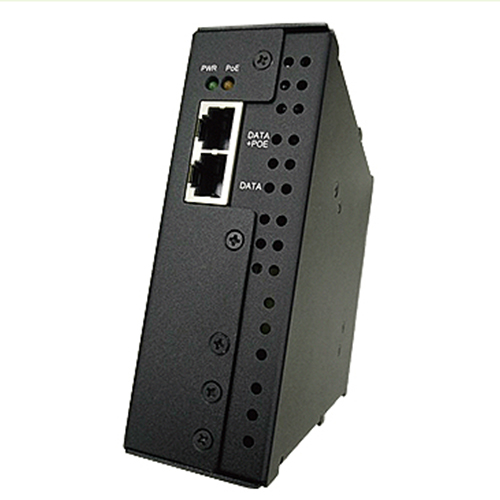

AC PoE

  • Universal AC input / Full range
  • Class I Power (with earth pin)
  • Protections
  • Over Current Protection
  • Over Voltage Protection
  • Output Short Protection

Output 48V 0.375A 54.75~57V 2.2A
Dimension (L*W*H)(mm) 120*50*35.7 158.8*128.5*44
Plug / Inlet series C14
AC input voltage range 85~264 VAC / 50/60Hz 90~264 VAC / 50/60Hz
Working temperature -20~40°C @ 100% load -30~70°C @ 100% load
AC input voltage range IEC 60950-1, EN 60950-1
EMC standards EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B
Surge protection 1KV 8KV
Topology Passive (Without detection) Active (With detection)
Data rate 10 – 100Mbps 100Mbps – 1Gbps
