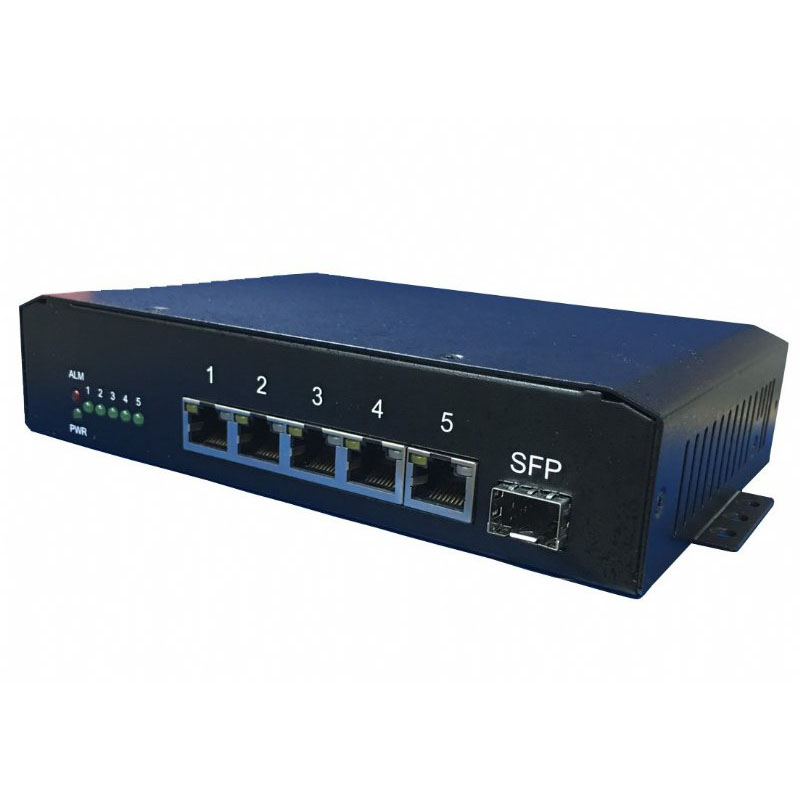

Pin assignment:
data pair A(1,2),
data pair B(3,6),
data pair C plus V+(4,5),
data pair D plus V-(7,8)
Port 5, 4 pairs PD
Maximum PoE power Port 1-4: IEEE802.3af – 16.8W
IEEE802.3at – 35W
Port 5: 90W (802.3at 2 event classification)
PSE disconnect mode DC disconnect
PoE auto detection IEEE802.3af & IEEE802.3at (2 event classification signaling)
PoE protection Over-temperature, over-current, over/under voltage
LEDs *Link/Activity (Green ON/ Green Blinking @1000Mbps,
Yellow/Yellow Blinking @10M/100Mbps)
*PoE (Green) port 1-4 ON - PD detect
Port 5 ON – 4 pair power, Blinking-2 pair power
*POWER Green-normal, Red-alarm
Power input DC power supply on the rear(@48V typical), or port 5 (UPLINK/TP)
from network switch or midspan
Power consumption less than 5W when without PD loading
Operating temperature
-40°C~ +70°C
Operation humidity 90% relative humidity, non-condensing
Storage temperature
-40°C~+85°C
Dimension 40mm(H)x195mm(W)x130mm(D)
