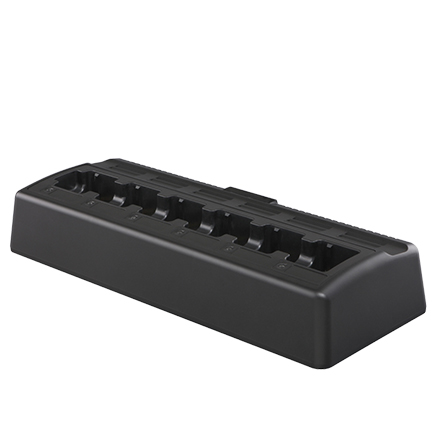

1. Electrical Requirements
1.1 Input Characteristics :
1.1.1 Rated Input Voltage:100-240 V
1.1.2 Input Voltage Range: Continuously 90 V to 264 V
1.1.3 Input Frequency Range:Continuously 47 Hz to 63 Hz
1.1.4 Input Current:1.5 A-0.8A
1.1.5 Input Current Harmonic:N/A
1.2. Output Characteristics :
1.2.1 Charge Control.
Charge current: Ni-MH 1000mA/±5% , Li-ion B+1:980mA/±5% , B+2:1420mA/±5%
Charge voltage(Battery voltage): Li-ion 8.40V+0/-1% (0℃≦T≦40℃)
Cut-off method(-ΔV): Ni-MH -60mV±20mV≦-ΔV
Time of no detected -ΔV sensor:Ni-MH 5min
Voltage range of the –ΔV detected:Ni-MH 7.8V - 9.0V
Charge current of end of rapid charge: Li-ion 150mA±20mA
Low voltage battery charge timer: Ni-MH , Li-ion , 90min
Rapid charge timer: Ni-MH , Li-ion , 300min
CEC: Correspondence
Low temperature charge timer: Ni-MH 20min
Starting charge temperature range: Ni-MH , Li-ion , 0℃≦T≦40℃
On charge temperature range: Ni-MH , 0℃≦T<60℃ , Li-ion , 0℃≦T<57℃
Low temperature charge temperature range: Ni-MH , 0℃≦T<6℃
Stand-by for spec out of temperature range: Ni-MH , T≧60℃+3/-3℃, T≦0℃+3/-3℃ , Li-ion , T≧57℃+3/-3℃, T≦0℃+3/-3℃
Trickle charge (after rapid charge):Ni-MH , on: 130ms 60mA±20mA , off: 9.0s
Low voltage battery: Ni-MH 4.8V±0.3V or less , Li-ion 5.5V ±0.1V or less
Low voltage battery charge current: Ni-MH , Li-ion , 150mA±20%
Low temperature charge current: Ni-MH , 150mA±20%
Over voltage battery: Ni-MH , 11.4V±0.3V , Li-ion , 8.55V±0.1V
Re-charge voltage: Ni-MH , 7.3±0.2V or less , Li-ion , 7.5±0.2V or less
※Voltage in the spec means cell voltage.
※Data is at 25℃±5℃ unless otherwise stated.
※About voltage write down
※S-type is S terminal voltage.
※B-type is not equal B1+voltage.
B-type = (B1+voltage) - Vf
Therefore B-type voltage must consider Vf of protected reverse connection diode.
