Charger チャージャー

Usable Ambient Condition: -0℃~+40℃,5%~90%
Storage Ambient Condition: -30℃ ~+ 70℃
Input Rating: Input DC 10.8V~13.2V,1A from Adaptor When input range 90~264VAC
Charging Battery: Li-ion:7.4Vdc(2 cells)1430mAH , Li-ion:7.4Vdc(2 cells)1880mAH
Refer Fast Charging-timer:180minutes* Ref.

LED Indication:
RED:Fast charge, Standby mode
GREEN: finish charge process
RED Blinking :Abnormal(charger’s terminals & Battery)

Charging Rating:
Charging current :945mA±5%
Starting Fast charging Temperature :-2℃± 3℃ ≤T≤43℃± 3℃
Low Battery Voltage :6.1V±2%
Charging current for low Battery voltage: 130mA~170mA
Current cut-off:100±20mA
Finish charging timer:180min

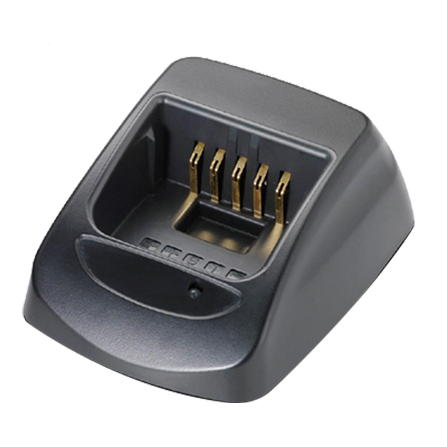

Charge Terminals:
+:Charge terminal
S :Terminal for distinction of  battery
T :Terminal for detection temperature
-:Ground terminal

Charging method &Current:
Constant-current :  945mA±5%
Constant voltage :  8.4V +0%-1%

Fast charging& Cut-off function:
Timer    : 180minutes cut off
Current   : 100mA±20mA cut off

LED Indication:
No battery inserted :Light off
1.Terminals contact problem : Red blinking or off
2.Terminals T or S shorted  : Red blinking.
3. Battery circuit abnormal  : Red blinking.
4. Li-ion In fast charging process ,terminal shorted :Red blinking
Battery voltage up to 8.61V±0.1V            :Red blinking
5.After full charge :Green
6.Li-ion After Fast Charging Timer :     ≥ 7.9V±0.2V  →Green , ≤ 7.9V±0.2V  →Red blinking
7.Fast charging :Red
8.Total charging Timer operating :Green

Re-charge:V<7.6V±2%
