Mini Cool Edge IO(MCIO) is a flexible, robust and high performance connector and cable assembly solution that helps
server and networking equipment design flexibility, reduces overall space, and extends the reach for high data rate signals.

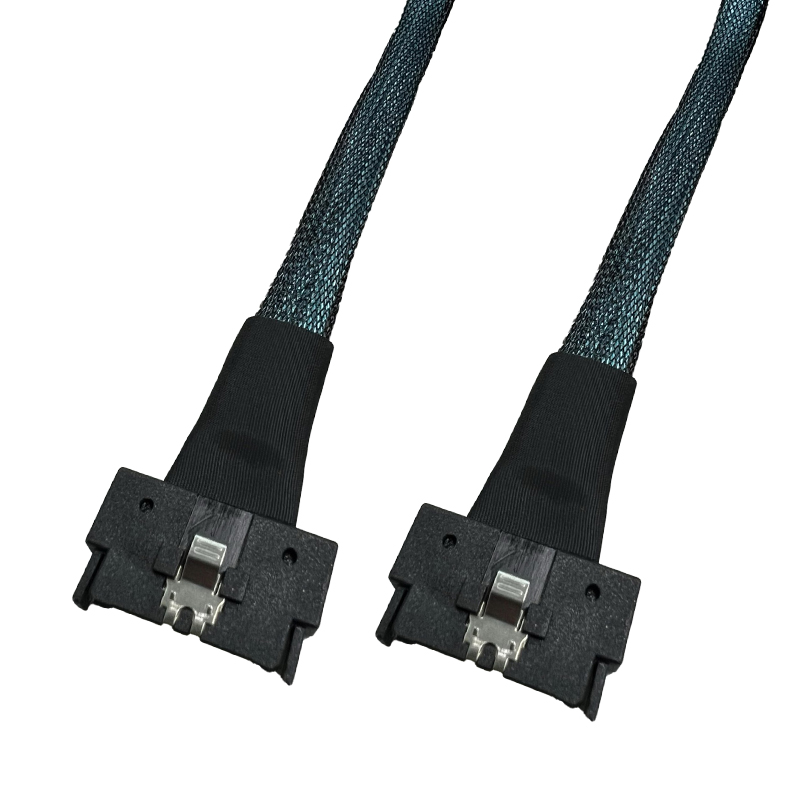

MCIO cable assemblies are provided with both discrete and ribbon raw cable 34AWG to 30AWG. The MCIO connector design is
scalable to 24 channels and is available in straight, right angle, right side-exit and left side-exit plug configurations to mate with
right angle and vertical board mount connectors.
MCIO cables are designed for data center, networking and telecommunications markets that use SAS, PCIe, Ethernet and other
signal protocols. The solution can support cable to board and card to board applications in system, which include chip to chip, chip to
module, chip to board and card edge option.
Features and Benefits:
Support cable to board and board to board application: 1.57mm PCB card thickness compatible with PCIe riser card
Multiple channels are optional: 4X/6X(38pos.), 8X(50pos.), 8X/12X(74pos.)
Small size design with great robustness : pitch 0.6mm connector and max 25N wrenching test
Excellent SI performance: signal rates up to PCIe5 32GT/s, 56 GT/s NRZ today and scalable to 112 GT/s PAM-4 in the future
Compatible with many different industry standards and protocols including Ethernet, 56GT/s NRZ, 112 GT/s PAM-4, SAS and PCIe
Straight, right angle, side exit and customization cable plug are optional
Supports 85 ohm impedance applications, 100 ohm will be available in the future
30-34AWG are available for both discrete and ribbon cable
RoHS compliant. Halogen free is available on request
Product Applications:
Servers and storage devices
High performance computing
Data center and networking equipment
Wireless base stations and radios
Industry Standards:
25G Ethernet
56 GT/s NRZ and 112G PAM4 (simulation data)
PCIe Gen 3 / Gen 4 / Gen 5
SAS 3.0 / 4.0 / 5.0
